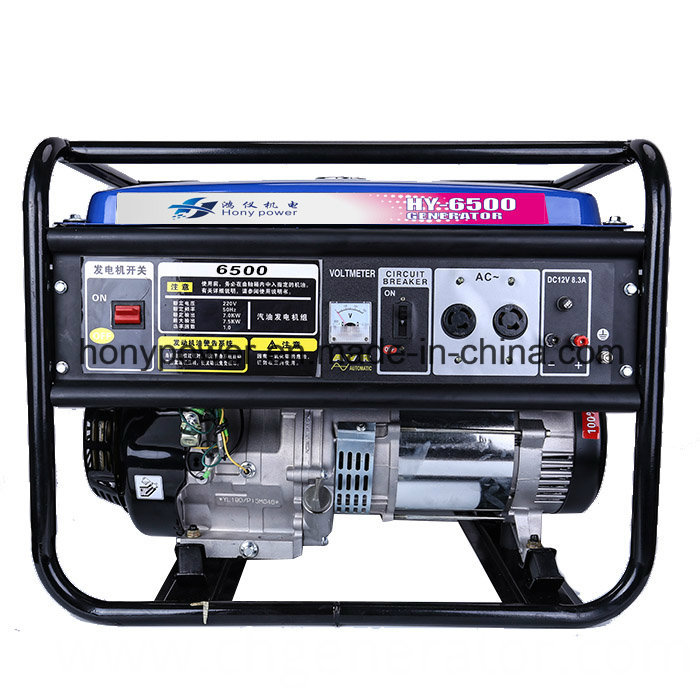

2-7kw Tiger Portable Air Cooled 4-Stroke Gasoline Generator

Basic Info

Model No.:  hy2500-8000

Product Description

Model NO.: hy2500-8000 Starting: Electric Start Power: 0.45kw-10kw Trademark: hony power Origin: Fuan, China Output Type: AC Single Phase Phase: Single-Phase Standard: Standard Specification: 100% copper wire HS Code: 8502200000 2-7kw Tiger Portable Air Cooled 4-Stroke Gasoline Generator   2-7kw Tiger Portable Air Cooled 4-Stroke Gasoline Generator
Technical data:
*With self-made reliable engine and Strict Testing from Spare Parts to whole Machine,HONYPOWER have superior durability with high performance-price ratio, it isnumber one Silent gasoline Generator
*Two-stroke, high efficiency Gasoline Engine generator
*Light, compact, portable, easy to operate
*Economical, low fuel consumption for 8hours running without refueling]
*Overload protection for safe running
*Easy maintenance with Brushless Alternator electronic ignition
*Suitable for camping, lighting&small hand tools
*Any color can be offered

NAME ITEM 950 Gasoline Generator air -cooled two stroke
Generator Rating frnquency(HZ) 50 60 50 60 50 60
Rating voltage(V) 110/120/220/230/240
Rating power(KVA) 0.4 0.45 0.5 0.55 0.6 0.65
The Max.Power(KVA) 0.45 0.5 0.55 0.6 0.65 0.7
Power factor(cos) 1/0.8
ENGINE Type IE45F
Category Single crock,air-cooled,twostroke gasoline engine
Exclusion of cylinder(cm³) 63
The Max.Outpower Power(KV/rpm) 1.5/3600
Start system Recoil
Ignition ysytem CDI
Capacity of fuel tank(L) 4
Consumption of fuel(L/h) 0.57
Consecutive working(h) 7
Nosie(at 7m)(dB) 62
DIMENSION Set dimension(mm) 360*315*315
Net weight(kg) 18 19 20

 OVERVIEW
MODEL HY1500
HY1500E
HY2500
HY2500E
HY3500
HY3500E
HY4500
HY4500E
HY5500
HY5500E
HY6500
HY6500E
HY8000
HY8000E
HY8000T
Generator Frequency(HZ) 50 60 50 60 50 60 50 60 50 60 50 60 50 60
Voltage(V) 110,115,120,220,230,240,110/220,115/230,120/240
Max. Power(kW)(KVA) 1.5 1.9 2.2 2.9 2.7 3.5 3.5 4.0 4.5 5.5 5.5 6.0 6.5 7.0
Rated Power(kW)(KVA) 1.3 1.5 2.0 2.3 2.5 3.0 3.0 3.5 4.0 5.0 5.0 5.5 6.0 6.5
DC. Current(A) 12V/8.3A
Power Factor cosφ 1.0/0.8
Engine Model HY160 HY200 HY200 HY270 HY340 HY390 HY420
Max. Output(HP) 5.5/3600rpm 6.5/3600rpm 6.5/3600rpm 9.0/3600rpm 11/3600rpm 13/3600rpm 16/3600rpm
Displacement(cc) 163 196 196 270 337 389 418
Noise Level(at 7m) 64dB 65dB 65dB 73dB 77dB 77dB 78dB
Starting System Recoil/Electric
Type Force air-cooled 4 stroke, OHV
Ignition System Non-contact transistorized ignition (T.C.I.)
Fuel Tank (L) 12 25
Oil Capacity (L) 0.6 1.1
Package Dimension(LXWXH)mm 600*440*448 690*530*555
G.W (kg) 40 43.5 46.5 75 73 78 81
NOTE:1."E" represents "Electric start". 2."T" represent "Three phase,220/380V"
3.The carrier can be changed by 2-wheel and 2-handle structure,4-wheel and 2-handle structure or non-wheel and non-handle structure to meet customer's requirements.
