Graphite Packing Spiral Wound Gasket Flange Gasket

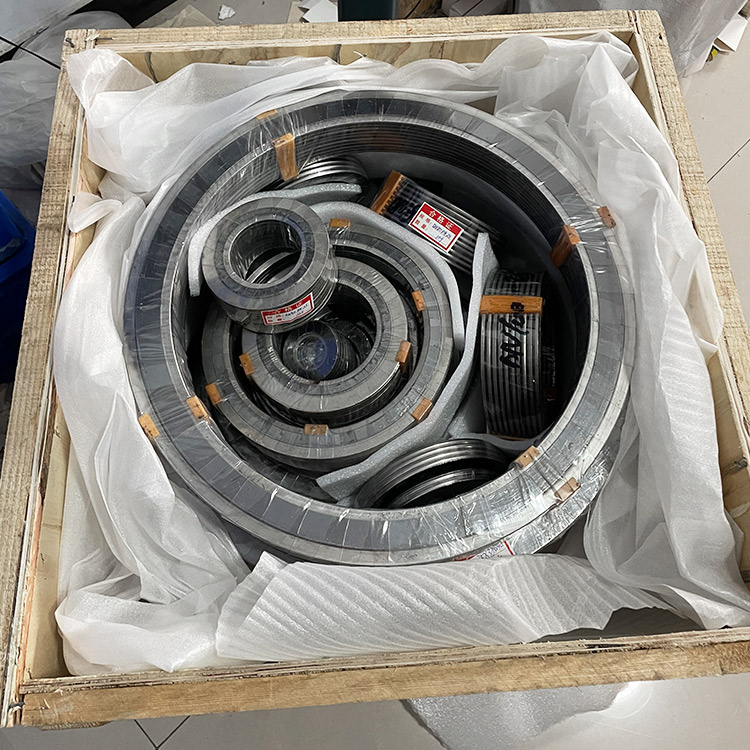

Packaging:	Packing Details:In poly bags and cartons, standard exported package.
Productivity:	5 ton each month
Brand:	Aohong
Transportation:	Ocean,Land,Air,Express
Place of Origin:	China
Supply Ability:	10 Ton/Tons per Day
Certificate:	ISO9001:2015
HS Code:	8484100000
Port:	Xingang,Shanghai,Ningbo

Basic Info

Model No.: Graphite

Product Description

Finished gasket > Graphite Gaskets > Graphite Packing Spiral Wound Gasket Flange Gasket

Product properties

Gasket type	A,B,C,D
Component	inner ring, ourter ring, sealing element
Fill Material	graphite,PTFE, Non-asbestos, Mica,etc
Winding Material	SS304, other material please contact me
Standard Thickness	3.2mm, 4.5mm
Color	According to ASME B16.20, can custom

IF YOU ARE INTERESTED, PLEASE CONTACT ME FOR INQUIRY.

Product introduction

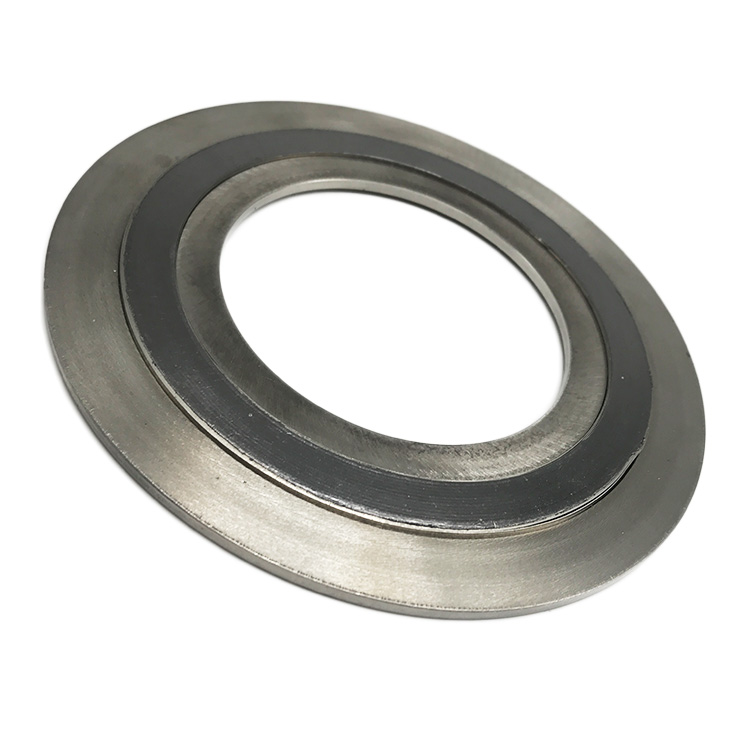

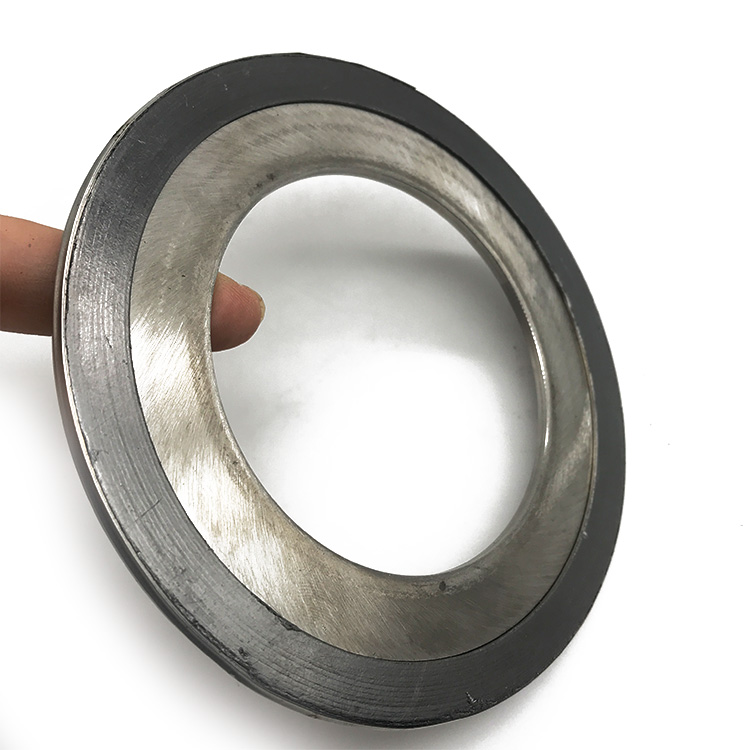

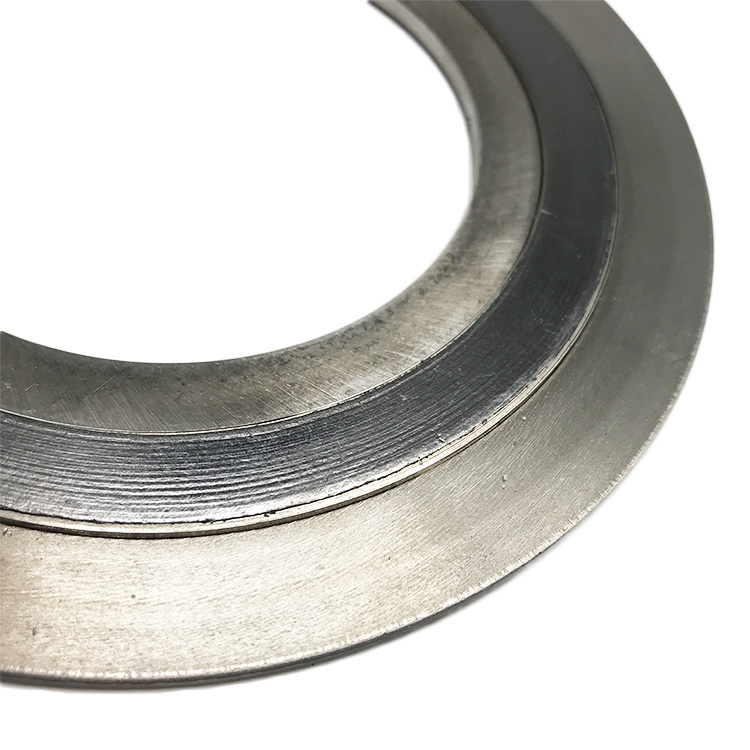

A Spiral Wound Gasket is the most common metallic gasket used in industrial plants. A properly selected and installed spiral wound gasket can withstand high temperatures and pressures, preventing leaks throughout their intended lifespan. A spiral wound gasket consists of three elements: Outer ring. Made of carbon steel, this outer ring is sometimes called the centering ring or guide ring. It’s used to center the gasket when you insert it into a bolted flange joint.

Inner ring. The inner ring is pivotal for the gasket because it prevents windings from buckling inside the pipe. When a gasket buckles, parts of it get sucked into the pipe. From there, pieces of the gasket will typically flow through the pipeline until they get caught on something. Often, they’ll get wrapped around rotating equipment like a pump. Inner rings help you avoid this problem.

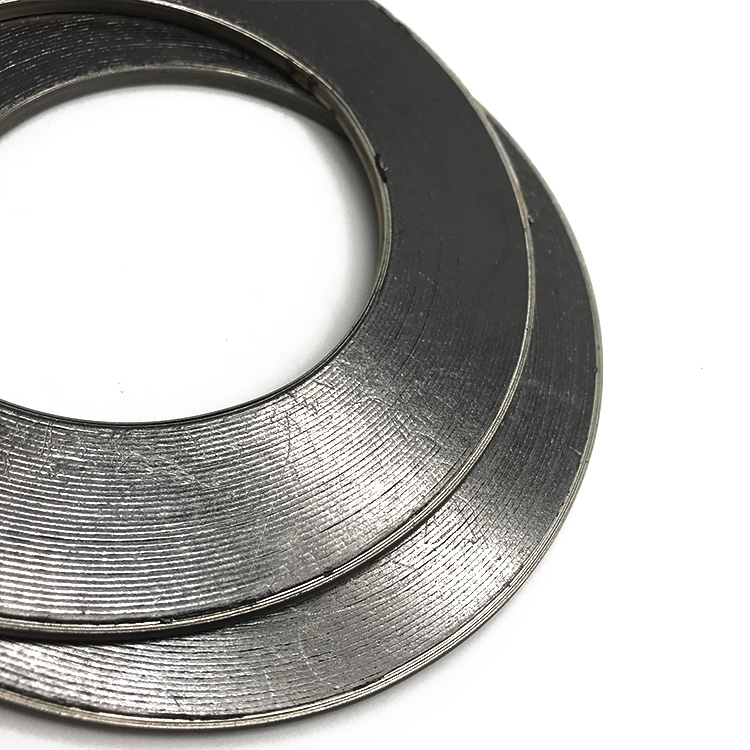

Sealing element. As you might guess from the name, the sealing element creates the seal that prevents leaks. A sealing element encompasses both windings and filler material. Most spiral wound gaskets in oil and gas refineries will use a flexible graphite filler material rated for high temperatures. A flexible graphite filler also allows the gasket to be more tolerant of flange distortion and joint misalignment. Polytetrafluoroethylene (PTFE) is another common filler material. PTFE is not rated for high-temperature applications.

Hengshui Aohong Technology Co.,Ltd.

Hengshui Aohong Technology Co.,Ltd is a group company. She has two wholly-owned manufacturing factory (Hengshui Aohong Special Glass Manufacturing Co., Ltd. and Hebei Fuyuan Sealing Material Co., Ltd. ) and an import and export marketing company (Hengshui Aohong Technology Co., Ltd. ) in China. After 20 years growing and developing, it enjoys a high reputation at home and abroad. Based in north of China, we have strong supply chain system and professional sales team, and ensure to provide lowest cost, best price and high quality products to meet customers requirements. Also has fast delivery time and outstanding services to make clients satisfaction. Our main products include: 1)Sealing products and thermal insulation material (non-)asbestos rubber sheet,(non-) Asbestos Cylinder Head Gasket Sheet, Industrial rubber sheet, PTFE sheet,PTFE gasket, sealing braided packing, sealing gasket, asbestos cloth,rope, tape, Fiberglass cloth,rope,tape Ceramic Fiber cloth,rope,tape 2)Glass products: Reflex gauge glass Transparent gauge glass Round and rectangular sight glass Borosilicate rod and tube
