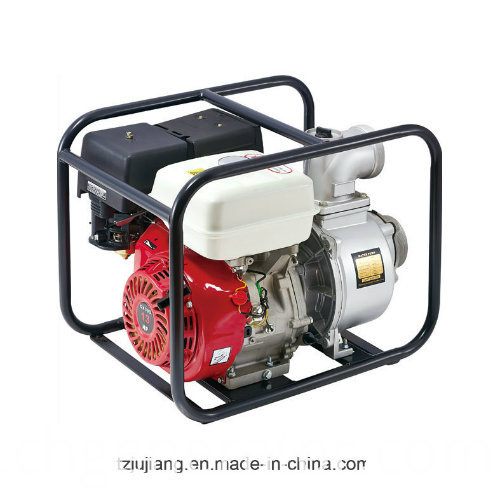

CE Approval 4inch/13HP Iron Camshaft Gasoline Water Pump (WP-40)

Basic Info

Model No.:  WP-40

Product Description

Model NO.: WP-40 Structure: Single-stage Pump Type: Blade Pump Theory: Centrifugal Pump Cam: Iron Cam Trademark: JUJIANG Origin: Zhejiang, China Material: Cast Iron Power: Gasoilne Engine Application: Agricultural Irrigation Engine Power: 13HP Certificate: CE Specification: CE/SONCAP HS Code: 8413709910
CE Approval 4inch/13HP Iron Camshaft Gasoline Water Pump (WP-40)
Engine:JJ188 13HP air-cooled  1-cylinder 4-stroker OHV engine
Iron:Cast Iron
Displacement:389cc
Fuel tank capacity:6.5L
Oil capacity:1.1l
Suction:7m
Head lift:28m
Output:80m3/h
Size:640×465×515mm
Net weight:51kg
20GP load:180pcs
CE Approval 4inch/13HP Cast Iron Gasoline Water Pump (WP-40)


4 Inch Gasoline Water Pump
With CE, SONCAP, ISO9001: 2000 certificate.
We are confident in supplying products with good quality at reasonable price.
Looking forward to long-terms, fruitful and stable cooperation with you.
Please contact me if you have any interest, thanks.
Model WP15 WP20 WP30 WP40
Outlet Size(mm) 40 50 80 100
Inlet Size(mm) 40 50 80 100
Speed (rpm) 3600 3600 3600 3600
Q. max(m3/h) 27 21 60 80
H. max (m) 20 30 30 25
Suction(m) 7 7 7 7
Maximum Power Output (HP) 2.5 5.5 6.5 11
Engine Model JJ154 JJ168F JJ168-1 JJ188
Bore x Stroke (mm) 52x38 68x45 68x54 88x64
Displacement (cc) 80.7 163 196 389
Compresslon Ratlo 7.7: 1 8.5: 1 8.5: 1 8.0: 1
Maximum Power Output 1.7kw/4000rpm 4.0kw/3600rpm 4.8kw/3600rpm 9.5kw/3600rpm
Recommended Power Using 1.65kw/3600rpm 3.4kw/3600rpm 4.0kw/3600rpm 8.0kw/3600rpm
Maximum Torque 4.2N. M/3200RPM 10N. M/2500RPM 11N. M/2500RPM 21N. M/2500RPM
Ignition System Non-contact transistorized(TCL)
Engine type Single cylinder, Air-cooled, 4-stroke, 25 inclined
Starting System Recoil and hand-operated Recoil and hand-operated/Eletric start
Air Cleaner semi-dry oil bath type semi-dry oil bath type
Fuel tank Capacity (L) 1.6 3.6 3.6 6.5
Fuel Consumption(L) ≤ 450g/kw/h ≤ 395g/kw/h ≤ 395g/kw/h ≤ 395g/kw/h
oil Capacity (L) 0.37 0.6 0.6 1.1
Net Weight(kg) 18/39.6 27/59.4 30/66 47103.4
Dimensions LxWxH(mm) 450x340x355 480x370x415 520x390x460 615x445x52

Contact us if you need more details on Water Pump. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Gasoline Water Pump、Gasoline Water Pumps. If these products fail to match your need, please contact us and we would like to provide relevant information.
