Home > Products > Gasoline Water Pump > 3 Inch Agricultural Using Airrigation Self-Priming Gasoline Water Pump (WP30)

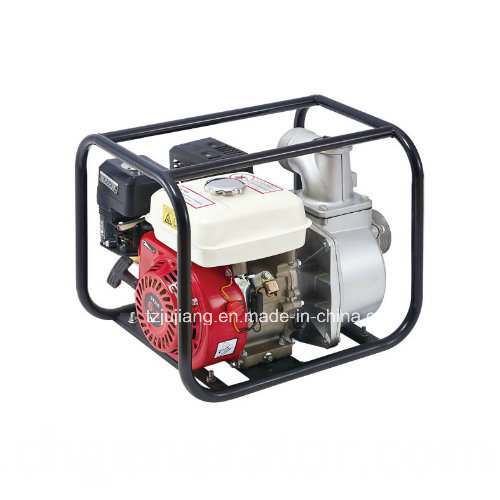

3 Inch Agricultural Using Airrigation Self-Priming Gasoline Water Pump (WP30)

800 PCS/Day
Place of Origin:
Zhejiang, China
Supply Ability:
800 PCS/Day
  • Mr. Catherine Zhou

Basic Info

Model No.:  WP30

Product Description

Model NO.: WP30 Structure: Single-stage Pump Type: Blade Pump Theory: Centrifugal Pump Pump: 3inch/80mm Fuel: Gasoline/Petrol Certificate: CE/Soncap Specification: CE/SONCAP/ISO9001 HS Code: 8413709910 Material: Cast Iron Power: Gasoline Engine Application: Agricultural Irrigation Engine: 6.5HP Gasoline Engine Camshaft: Iron Camshaft Brand: Wokun/Sumepaq Trademark: WOKUN/SUMEPAQ Origin: Zhejiang, China
3 Inch Agricultural Using Airrigation Self-Priming Gasoline Water Pump (WP30)

3 Inch agricultural using aIrrigation Self-Priming Gasoline Water Pump (WP30)
Specification Of 3 Inch Gasoline Water Pump

Engine:WK168 1-Cylinder ,4-stroke air-cooled OHV Gasoline Engine
Speed:3600 rpm
Fuel tank capacity:3.6L
Lube oil capacity:0.6L

Outlet size:80mm
Flow :60m3/h
Suction :7m
Net weight:26kg
20GP Capacity:330PCS

1.Iron cast use ,easy to start
2.Huayi/Chuangxin brand can be choosed
3.Muffler with asbestos,low noise .
4.Real oil alert inside to protect engine if lube oil run out
5.Shining and good quality pump
6.Smooth and heavy circle frame

3 Inch Irrigation  Self-priming Gasoline Water Pump (WP30)
our company claim ,any quality  problem happened ,we can compensate the original value
Model WP30
Outlet Size(mm) 80
Inlet Size(mm) 80
Speed (rpm) 3600
Lift Head. max (m) 30
Flow. max(m3/h) 60
Suction(m) 7
Maximum Power Output (HP) 6.5
Engine Model JJ168-1
Bore x Stroke (mm) 68x54
Displacement (cc) 196
Compresslon Ratio 8.5: 1
Maximum Power Output 4.8kw/3600rpm
Recommended Power Using 4.0kw/3600rpm
Maximum Torque 11N. M/2500RPM
Ignition System Non-contact transistorized(TCL)
Engine type Single cylinder, Air-cooled, 4-stroke, 25 inclined
Starting System Recoil and hand-operated/Eletric start
Air Cleaner semi-dry oil bath type
Fuel tank Capacity (L) 3.6
Fuel Consumption(L) ≤395g/kw/h
oil Capacity (L) 0.6
run time per tankful @3/4 load 2.6h
Net Weight(kg) 26/28
Dimensions LxWxH(mm) 500x375x405
20GP/ 40HQ 330pcs / 828 pcs

Contact us if you need more details on Water Pump. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Gasoline Water Pump、Self-Priming Pump. If these products fail to match your need, please contact us and we would like to provide relevant information.
