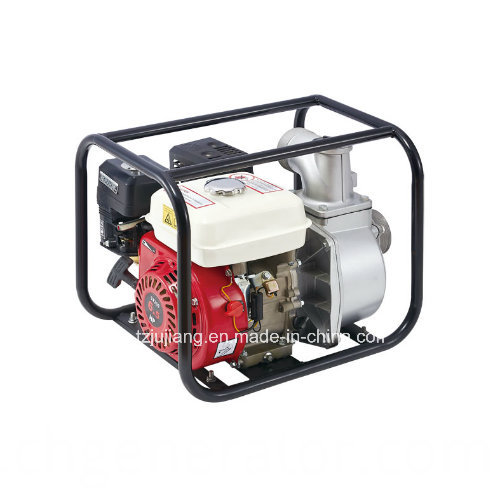

2inch 5.5HP Gasoline Water Pump for Agriculture Irrigation (WP20-1)

Basic Info

Model No.:  WP20

Product Description

Model NO.: WP20 Structure: Single-stage Pump Power: Gasoline Engine Type: Blade Pump Industry: Mechanical Pump Performance: No Leakage Pump Engine: 5.5HP Brand: Wokun Specification: CE SONCAP HS Code: 8413709910 Material: Cast Iron Assembly: Booster Pump Start Up: Start Pump Application: Agricultural Irrigation Media: Powder Pump Theory: Centrifugal Pump Certificate: Ce/Soncap Trademark: WOKUN Origin: Zhejiang, China
2inch 5.5HP Gasoline Water Pump for Agriculture Irrigation (WP20-1)

2 Inch Gasoline Water Pump

With CE, SONCAP, ISO9001: 2000 certificate.
We are confident in supplying products with good quality at reasonable price.
Looking forward to long-terms, fruitful and stable cooperation with you.
Please contact me if you have any interest, thanks.
Model WP15 WP20 WP30 WP40
Outlet Size(mm) 40 50 80 100
Inlet Size(mm) 40 50 80 100
Speed (rpm) 3600 3600 3600 3600
Q. max(m3/h) 27 21 60 80
H. max (m) 20 30 30 25
Suction(m) 7 7 7 7
Maximum Power Output (HP) 2.5 5.5 6.5 11
Engine Model WK154 WK168F WK168-1 WK188
Bore x Stroke (mm) 52x38 68x45 68x54 88x64
Displacement (cc) 80.7 163 196 389
Compresslon Ratlo 7.7: 1 8.5: 1 8.5: 1 8.0: 1
Maximum Power Output 1.7kw/4000rpm 4.0kw/3600rpm 4.8kw/3600rpm 9.5kw/3600rpm
Recommended Power Using 1.65kw/3600rpm 3.4kw/3600rpm 4.0kw/3600rpm 8.0kw/3600rpm
Maximum Torque 4.2N. M/3200RPM 10N. M/2500RPM 11N. M/2500RPM 21N. M/2500RPM
Ignition System Non-contact transistorized(TCL)
Engine type Single cylinder, Air-cooled, 4-stroke, 25 inclined
Starting System Recoil and hand-operated Recoil and hand-operated/Eletric start
Air Cleaner semi-dry oil bath type semi-dry oil bath type
Fuel tank Capacity (L) 1.6 3.6 3.6 6.5
Fuel Consumption(L) ≤ 450g/kw/h ≤ 395g/kw/h ≤ 395g/kw/h ≤ 395g/kw/h
oil Capacity (L) 0.37 0.6 0.6 1.1
Net Weight(kg) 18/39.6 27/59.4 30/66 47103.4
Dimensions LxWxH(mm) 450x340x355 480x370x415 520x390x460 615x445x52

Contact us if you need more details on Water Pump. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Gasoline Water Pump、2inch Water Pump. If these products fail to match your need, please contact us and we would like to provide relevant information.
