1inch Iron Cam Gasoline Water Pump (WP10B) with Ie40 Engine

Basic Info

Model No.:  WP10B

Product Description

Model NO.: WP10B Structure: Single-stage Pump Power: Gasoline Engine Type: Blade Pump Industry: Mechanical Pump Performance: No Leakage Pump Trademark: WOKUN Origin: Zhejiang, China Material: Cast Iron Assembly: Booster Pump Start Up: Start Pump Application: Agricultural Irrigation Media: Powder Pump Theory: Centrifugal Pump Specification: CE/SONCAP HS Code: 8413709910

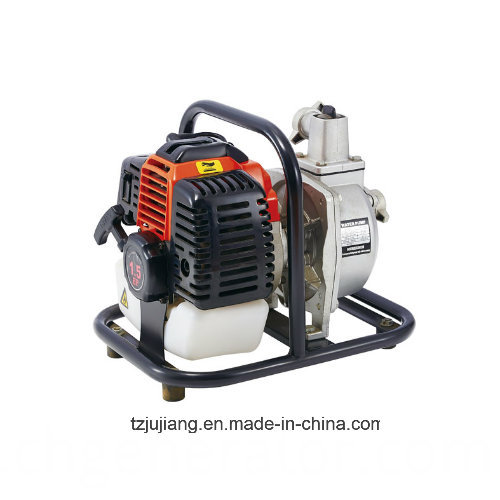

1inch Iron Cam Gasoline Water Pump (WP10B) with Ie40 Engine

1.5 Inch Gasoline Water Pump
With CE, SONCAP, ISO9001: 2000 certificate.
We are confident in supplying products with good quality at reasonable price.
Looking forward to long-terms, fruitful and stable cooperation with you.
Please contact me if you have any interest, thanks.
Item WP10(1' ' )
outlet size 25mm
inlet size 25mm
lift H. max(m) 22
Suction(m) 7
Engine type 1E40F-5A
Max output(HP) 1.5
Engine model 168F
bore× stroke 40× 34
Displacement 42.73
Compression Ratio 7.66: 1
Ignition System C. D. I
Start Model Manual
Air cleaner semi-dry or oil bath type
fuel tank Capacity 1.2L
fuel consumption 610g/kw. h
Oil capacity 0.6L
packing (mm) 310× 295× 315
N. W(kg) 8
G. W(kg) 9


Contact us if you need more details on Water Pump. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Gasoline Water Pump、Gasoline Water Pumps. If these products fail to match your need, please contact us and we would like to provide relevant information.
