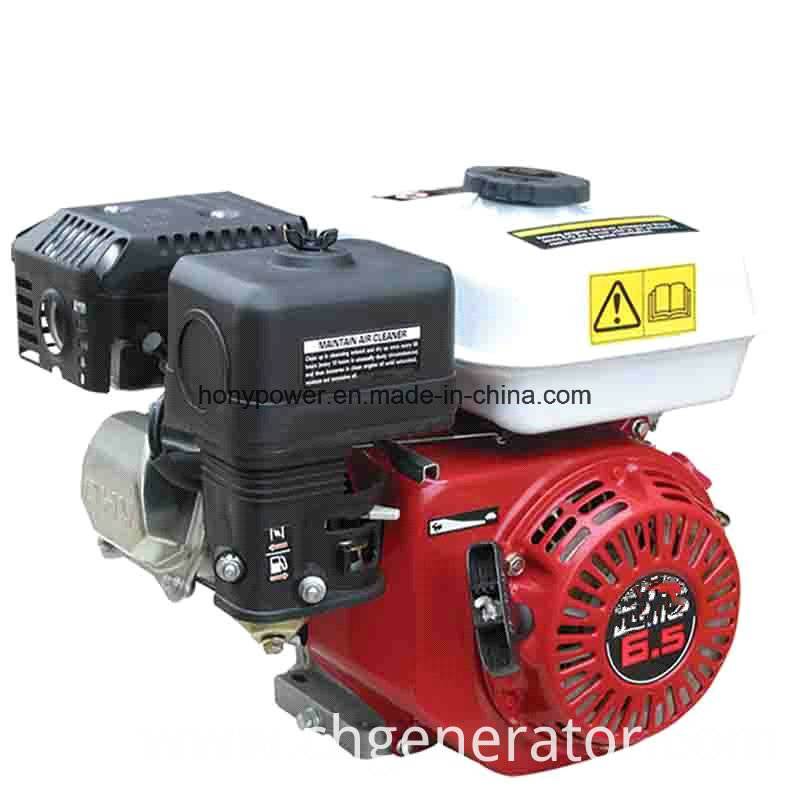

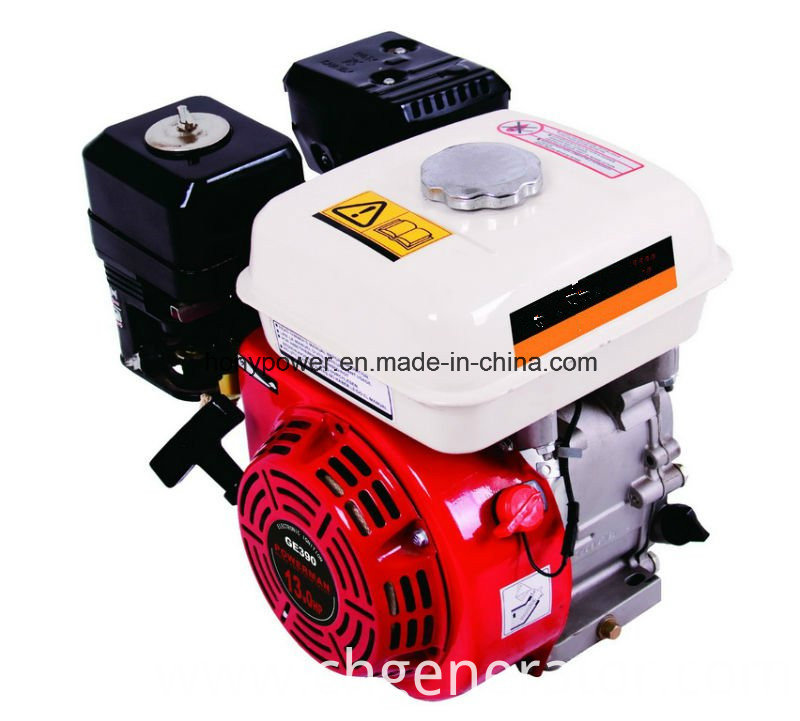

4 Stroke 5.5HP Single Cylinder Engine 168f Gasoline Engine

Basic Info

Model No.:  188

Product Description

Model NO.: 188 Speed: Low Speed Intake Pressure Impulse: Naturally Aspirated Fuel: Gasoline Cylinder Arrangement Form: L Type: External Combustion Engine Specification: Boat Engine/Small Gasoline Engine/4-Stroke Engine HS Code: 8501610000 Ignition Mode: Electric Ignition Cooling Cylinder: Air-Cooled Piston Movement: Reciprocating Number of Strokes: Four-Stroke Number of Cylinders: 4-Cylinder Trademark: HONY POWER Origin: Fuan, China 4 Stroke 5.5HP Single Cylinder Engine 168f Gasoline Engine
4 Stroke 5.5HP Single Cylinder Engine 168f Gasoline Engine4 Stroke 5.5HP Single Cylinder Engine 168f Gasoline Engine4 Stroke 5.5HP Single Cylinder Engine 168f Gasoline Engine4 Stroke 5.5HP Single Cylinder Engine 168f Gasoline Engine
Model No. hy154F HY160 HY200 HY210 HY270 HY390 HY420
Description                                                                                                                                                                                   Gasoline Engine
Type vertical single cylinder, 4-stroke, forced air-cooling,SV, horizontal shaft                                                                    25° Inclined Single Cylinder, 4 stroke, OHV, Horizontal Shaft, Forced Air-Cooling
Cylinder Dia. × Stroke 54mm×38mm 68mm × 45mm 68mm × 54mm 70mm ×54mm 77mm ×58mm 88mm ×64mm 90mm ×66mm
Displacement 87ml 163ml 196ml 210ml 270ml 389ml 420ml
Compression Ratio 7.7:1 8.5:1 8.5:1 8.5:1 8.2:1 8.0:1 8.0:1
Max. Power Output 2.8hp / 2.2kw / 3600rpm 5.5hp / 4.1kw / 3600rpm 6.5hp / 4.8kw  / 3600rpm 7.0hp / 5.1kw  / 3600rpm 9.0hp / 6.75kw  / 3600rpm 13hp / 9.6kw  / 3600rpm 15hp / 11.2kw / 3600rpm
Rated Power Output 1.9hp / 1.4kw / 3600rpm 4.85hp / 3.61kw / 3600rpm 5.8hp / 4.3kw  / 3600rpm 6.0hp / 4.4kw  / 3600rpm 8.2hp / 6.12kw  / 3600rpm 11.7hp / 8.6kw / 3000rpm 14hp / 10.5kw / 3000rpm
Max. Torque 3.5N.M. / 2500rpm 10.8N.M / 2500rpm 13.2N.M / 2500rpm 14N.M / 2500rpm 19.1N.M / 2500rpm 26.5N.M / 2500rpm 28N.M / 2500rpm
Ignition Mode Non-Contact Transistor Magneto                                                                                                       Non-Contact Transistor Magneto
Starting Mode Options                                                                                                                                                           Recoil / Electric
Engine Oil Capacity 0.4L 0.6L 0.6L 0.6L 1.1L 1.1L 1.1L
Fuel Capacity 1.5L 3.6L 3.6L 3.6L 6.0L 6.5L 6.5L
Recommended Fuel                                                                                                                                                      unleaded gasoline
Recommended Engine Oil                                                                                                                                                              SAE 10W-30
Fuel Consumption Rate 260g / hp.h 360g / kw.h 360g / kw.h 360g / kw.h 325g / kw.h 325g / kw.h 374g / kw.h
Carburetor Type                                                                                                                                                           Float Carburetor
Fuel Suppling Mode                                                                                                                                                              gravity feed
Lubrication Mode                                                                                                                                                              Splashing
Power Output Form                                                                                                                                                             crank shaft 1:1
Output End of Crank Shaft                                                                                                                                       Metric Thread / British Thread / Keyslot
Crank Shaft Rotation Direction                                                                                                                                                Clockwise (view from flywheel)
Air Filter Type                                                                                                                                     Semi-Dry / Oil Bath / Semi-Dry+Oil Bath
Dimension 315×310×320mm 390mmx330mmx340mm 390mmx330mmx340mm 390mm×330mm×350mm 515mm×420mm×470mm 465mmx410mmx455mm 515mm×420mm×490mm
N.W./G.W. 10kgs / 11kgs 15kgs / 16kgs 15kgs / 16kgs 15.5kgs / 16.5kgs 25kgs / 26kgs 31kgs / 33kgs 31.5kgs / 33.5kgs

Contact us if you need more details on Gasoline Engine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Engine、Petrol Engine. If these products fail to match your need, please contact us and we would like to provide relevant information.
