Basic Info
Model No.: F500, F800, F1000, F1300, F1600
Product Description

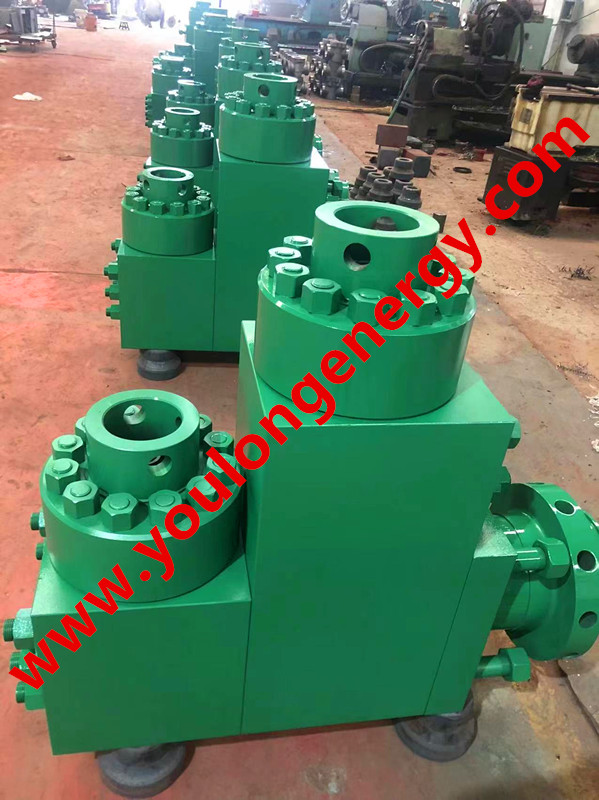

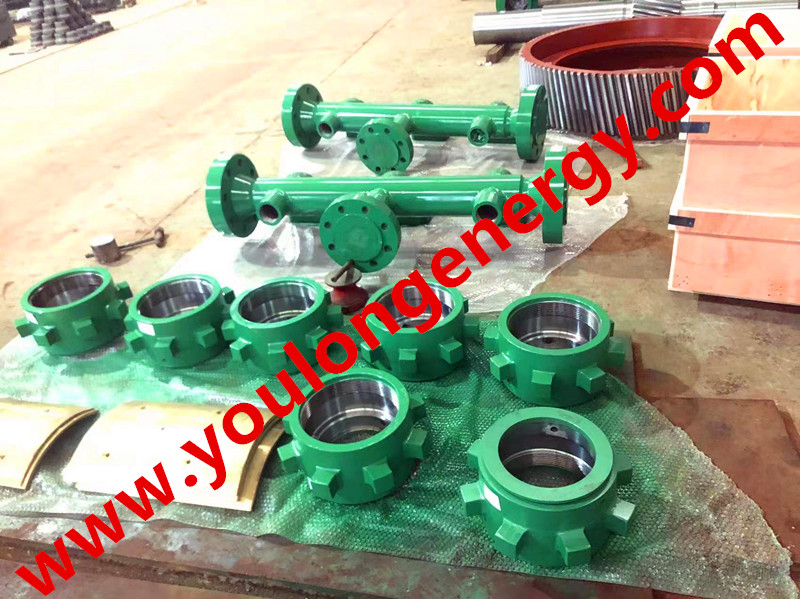

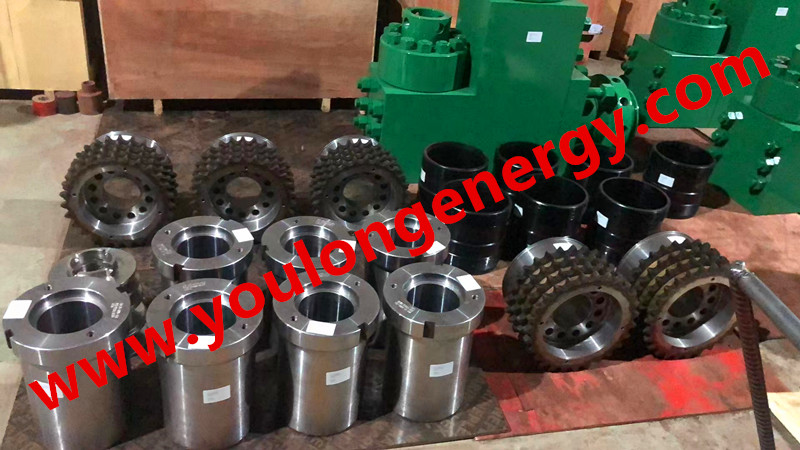

F500-1600 Mud Pump Fluid End Spares Valve Box Hydraulic Cylinder Valve Box
PRODUCT DESCRIPTION
Our F series mud pump are designed and manufactured on the basis of American Emsco F series mud pump strictly according to America Petroleum Institution API 7K Standard. All of its expendable parts are interchangeable with any other spare parts produced according to API standard. Therefore it is easy to repair and maintain internationally .





Item | F500 | F800 | F1000 | F1300 | F1600 |
Power Rating HP(kw) | 500 (373) | 800 (597) | 1000 (746) | 1300 (969) | 1600 (1193) |
Stroke RatingSPM | 165 | 150 | 140 | 120 | 120 |
Stroke Length(in /mm) | 7.5" /190.5 | 9"/228.6 | 10"/254 | 12"/305 | 12"/305 |
Gear Ratio | 4.286 | 4.185 | 4.207 | 4.206 | 4.206 |
Inlet Dia. (in/mm) | 8"/203 | 10"/254 | 12"/305 | 12"/305 | 12"/305 |
Outlet Dia. (in) | 4" Flange 5000psi | 5-1/8" Flange 5000psi | 5-1/8" Flange 5000psi | 5-1/8" Flange 5000psi | 5-1/8" Flange 5000psi |
Valve | API5# | API6# | API6# | API7# | API7# |
Max. Liner (in/mm) | 6-3/4"/170 | 6-3/4"/170 | 6-3/4"/170 | 7"/180 | 7"/180 |
Overall Dimension L*W*H(mm) | 3658*2709 *2231 | 3963*3025 *2410 | 4267*3167 *2580 | 4617*3260 *2600 | 4615*3276 *2688 |
Approx. Weight (kg) | 9770 | 14500 | 18790 | 24572 | 24791 |
Stroke per Minute | Liner size (mm) and Pressure Rating(Mpa/psi) | |||||||
φ170 | φ160 | φ150 | φ140 | φ130 | φ120 | φ110 | φ100 | |
9.4 1365 | 10.6 1540 | 12.1 1750 | 13.9 2010 | 16.1 2335 | 18.9 2740 | 22.5 3260 | 27.2 3945 | |
Displacement (L/S)(gpm) | ||||||||
165 | 35.67 565 | 31.60 501 | 27.77 440 | 24.19 383 | 20.86 330 | 17.77 281 | 14.93 236 | 12.34 195 |
150 | 32.43 514 | 28.73 455 | 25.25 400 | 21.99 348 | 18.96 300 | 16.16 256 | 13.58 215 | 11.22 178 |
140 | 30.27 480 | 26.81 425 | 23.56 373 | 20.53 325 | 17.70 280 | 15.08 239 | 12.67 201 | 10.47 166 |
130 | 28.11 445 | 24.90 394 | 21.88 347 | 19.06 302 | 16.44 260 | 14.00 222 | 11.77 186 | 9.73 154 |
120 | 25.94 411 | 22.98 364 | 20.20 320 | 17.60 279 | 15.17 240 | 12.93 205 | 10.86 172 | 8.98 142 |
110 | 23.78 377 | 21.07 334 | 18.52 293 | 16.13 255 | 13.91 220 | 11.85 188 | 9.96 158 | 8.23 130 |
Based on 100% volumetric efficiency and 90% mechanical efficiency |
Henan Youlong petroleum Engineering Technology Co.,Ltd., Located in the beautiful petroleum city - Puyang City in the zhongyuan oil filed located, is a production research and development enterprise with product research and development organizations and perfect service teams, mainly engaged in the management, research and development of petroleum drilling and well repair equipment, special oilfield equipment, oil extraction equipment, wellhead and down hole tools, and the provision of petroleum engineering design schemes and petroleum engineering technical services.
And also our Leading groups mainly engaged in oil and gas industry nearly more than 40 years.
Our main products and Service are as following:
* Oilfield equipment production and supply : Cementing and Fracturing Equipment, Gate Valve and wellhead Christmas Tree, Plunger Pumps and Mud Pumps, Flow line Products, Solid Control Equipment, Drilling Rigs and Work over Rigs Matching Equipment etc.
* Engineering & workers supply to oilfield site.
* With Professional Teams experienced in the maintenance of drilling machinery,TDS,SCR equipment, we can undertake pumping unit oil well on-site management services.Long-term supply accessories of drilling rigs,work over rigs,mud pump and beam pumping unit, and distribute drill pipe, drill collar, casing, tubing, special drill pipe sub etc...
PACKAGEING DETAILS

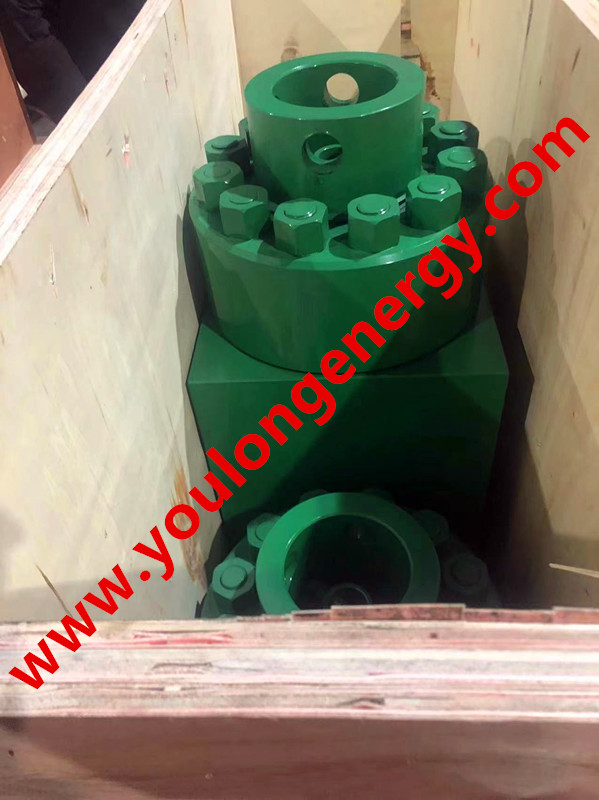

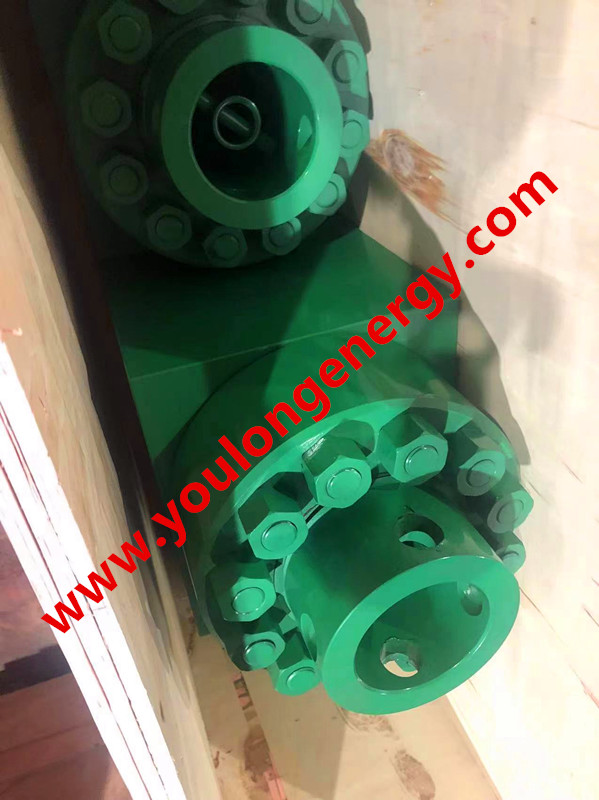

Packing is made of wooden case, which can protect the product from damage and the transportation process is safer.
